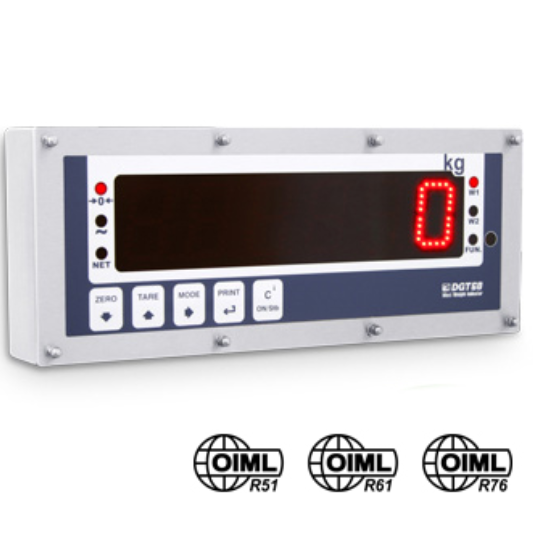

意大利diniargeo狄納喬DGT603GD防爆稱重儀表 DGT60稱重大屏幕

Weight indicator/ repeater particularly suitable for use in hazardous environments, where it's necessary to view the weight from a distance at any angle. Usable in areas:
ATEX II 3G Ex nR IIC T6 Gc X for gases
ATEX II 3D Ex tc IIIC T85°C Dc IP68 X for dust.
Fitted with a very bright 60mm LED matrix display and IP68 stainless steel case. CE-M approvable (OIML R-76 / EN 45501).

MAIN FEATURES

Functional 5-key waterproof keypad.
Large 6-digit display, 60 mm high, with very efficient SMD LEDs (software adjustment of the brightness intensity), complete of 6 Leds for indication of active functions, visible from over 25 m, with viewing angle up to 120° and with power up to 750 mcd.
IP68 stainless steel case complete of wall fixing bracket.
Calibration, Set-Up parameters, configurable from keyboard or from PC with DINI TOOLS.
Max. 10.000e or multirange 2 x 3000e @ 0,3 μV/e in CE-M approved version for legal for trade use.
Max. 800.000 displayable divisions viewable with internal resolution up to 3.000.000 points.
Up to 8 signal linearisation points with DINITOOLS.
A/D 24 bit sigma-delta 4-channel conversion, max.400 conv./sec. with automatic selection.
Connectable with up to 8 analogue load cells with 350 Ohm input resistance.
Management of a weighing system with up to 4 cells with digital equalisation or management of up to 4 independent weighing systems.
Power supply from 110-240 Vac.
Available as Scale or as Repeater version.

MAIN CERTIFICATIONS

EU Type Examination Certificate (45501:2015)
OIML R76
OIML R61 - MID
OIML R51

I/O SECTION

RS232/C bidirectional port configurable for connection to printer, PC, or other external units.
RS485 bidirectional port configurable for connection to PC, PLC, or other external units.
PROFIBUS bidirectional port (DGT60PB3GD model).
2 MOSFET 150 mA 48 Vac / 150 mA 60 Vdc (NO) outputs, with configurable functions.
2 optoisolator photocouplers: 12÷24 Vdc, 5 mA min - 20 mA max, with configurable functions.
16-bit analogue output (DGT60AN3GD model) 4-20mA / 0-5Vdc / 0-10Vdc at choice; maximum applicable voltage: 300 Ohm; minimum applicable voltage resistance: 1 kohm.

TAKE NOTE:
All the cables must be installed and protected according to the standards for electrical equipment.

DGT60R REPEATER FUNCTIONS

Version with specific program for use of the indicator as a universal weight repeater or as a multi-scale repeater (MASTER) in combination with DFW/DGT/MCW.
FUNCTIONING MODES:
- Multi-scale repeater (MASTER):
function which allows to repeat up to 32 independent scales, with the possibility of managing their functions, or displaying and printing the sum of the weighs of all the scales.
- UNIVERSAL weight repeater:
function which allows to repeat the weight of any scales, through the configuration of the input string.

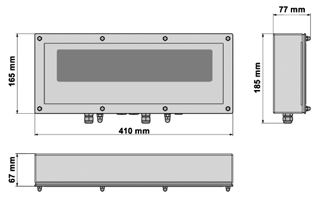

Dimensions in mm.

FUNCTIONS

THROUGH KEYBOARD:
Zeroing; Semi automatic and presettable tare, print and/or data transmission; ON/Stand-by.
SELECTABLE:
High Resolution Weighing x 10; Net/Gross or lb/kg conversion; Weighs totalisation; Formulation; Approved transmission of the weight to PC/PLC (with Alibi memory ALMEM option); Counting; In/Out Truck weighing; Hold e Peak.
EXTERNAL INPUT:
Simulation of key pressure; Keyboard lock.
MOSFET OUTPUT:
Set Point Control on the weight, either positive (in loading) or negative (in unloading), or on the pieces (counting mode), with programmable enabling/disabling thresholds, as direct check or upon weight stability.
SERIAL PORTS:
On all models: Reading of the net, gross, and tare weights; Clearing; Semi automatic and presettable tare; Scale switch; Setting of outputs activation thresholds; Reading/Writing of Alibi Memory.
DGT60BC3GD and DGT60AN3GD models: Reading of microvolts or ADC converter for all the channels; Message display; Printing; Setting of APW in counting mode; Simulation of key pressure; MODBUS serial protocol.
THROUGH 16 bit ANALOGUE OUTPUT (DGT60AN3GD):
Analogue output proportional to the net or gross weight, either positive (in loading) or negative (in unloading).

Available versions

	Code	Description
	DGT60BC3GD-1	ATEX 3GD weight indicator with 60mm LED display. IP68 stainless steel case and 5-key keypad. Protection mode: ATEX II 3G Ex nR IIC T6 Gc X for gases and ATEX II 3D Ex tc IIIC T85°C Dc IP68 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).
	DGT60AN3GD-1	ATEX 3GD weight indicator with 60mm LED display and analogue output. IP68 stainless steel case and 5-key keypad. Protection mode: ATEX II 3G Ex nR IIC T6 Gc X for gases and ATEX II 3D Ex tc IIIC T85°C Dc IP68 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).
	DGT60PB3GD-2	ATEX 3GD weight indicator with 60mm LED display and Profibus. IP68 stainless steel case and 5-key keypad. Protection mode: ATEX II 3G Ex nR IIC T6 Gc X for gases and ATEX II 3D Ex tc IIIC T85°C Dc IP68 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).
	DGT60R3GD-1	ATEX 3GD weight repeater with 60mm LED display. IP68 stainless steel case and 5-key keypad. Protection mode: ATEX II 3G Ex nR IIC T6 Gc X for gases and ATEX II 3D Ex tc IIIC T85°C Dc IP68 X for dust. Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).
